Huawei eKitEngine AP362E Access Point
,

Huawei eKitEngine AP362E Access Point

Compare

Huawei

AX3000 Dual-Band Ultra-High-Speed Wi-Fi 6 Settled AP

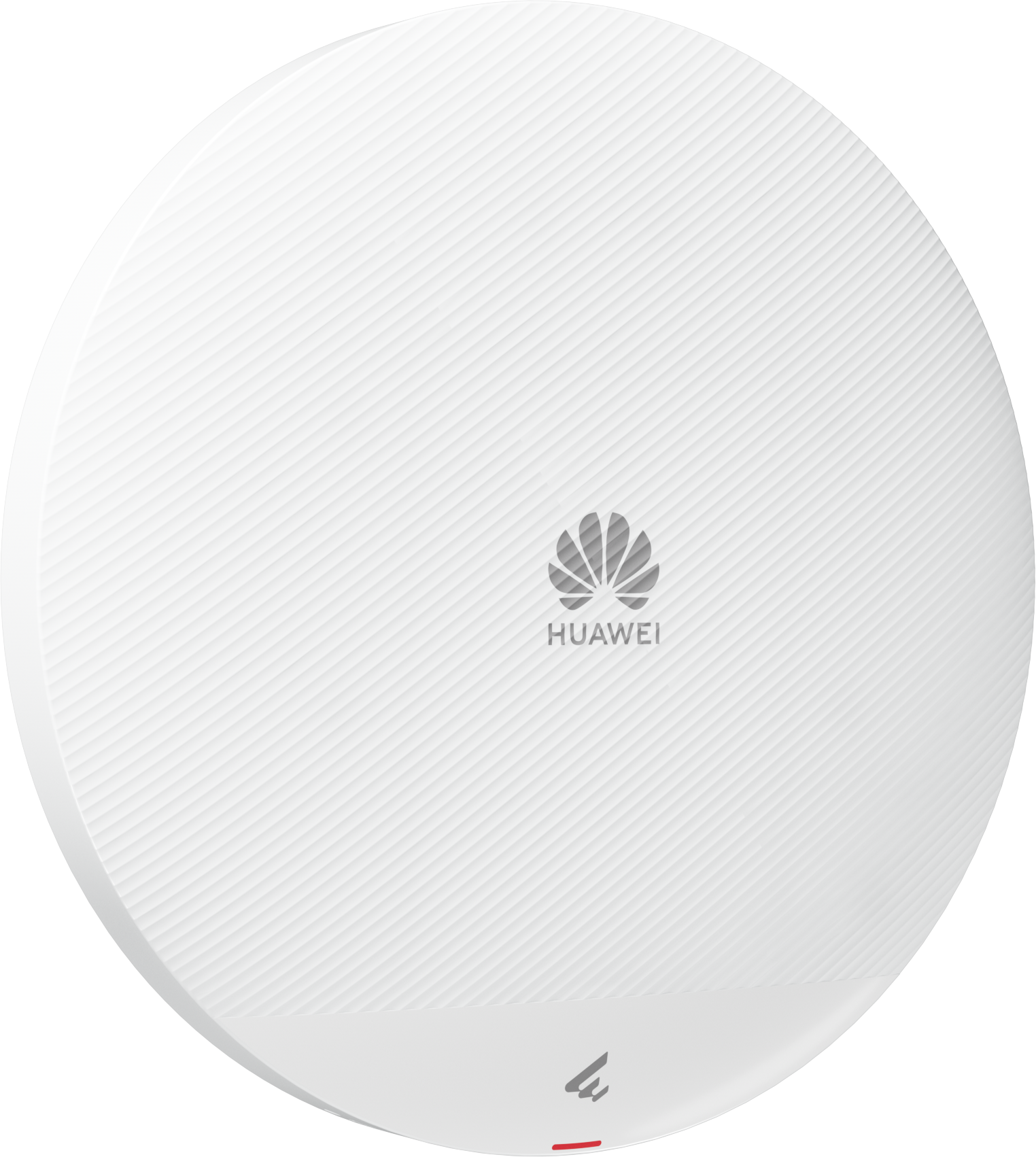

eKitEngine AP362E is an indoor access point (AP) in compliance with the Wi-Fi 6 (802.11ax) standard. It provides services
simultaneously on the 2.4 GHz (2×2 MIMO) and 5 GHz (2×2 MIMO) frequency bands, delivering a data rate of up to 2.975 Gbps.

Access Users 128



5.500,00 EGP

  • Feature Description
  • Wi-Fi 6 (802.11ax) Standard
  •  As the Wi-Fi 6 standard defined in IEEE 802.11, 802.11ax improves the user access capacity and bandwidth in high-density access
    scenarios, reducing service latency and enhancing user experience
  • Multi-user multiple-input multiple-output (MU-MIMO) on both the 2.4 GHz and 5 GHz frequency bands, allowing an AP to transmit
    data to and receive data from multiple stations (STAs) simultaneously and multiplying the utilization of radio spectrum resources.
  •  1024-quadrature amplitude modulation (QAM), improving data transmission efficiency by 25% compared with 802.11ac (256-QAM).
    MU-MIMO
    The AP supports MU-MIMO and supports a maximum of four spatial streams (two on the 2.4 GHz frequency band and two on the 5 GHz
    frequency band). The MU-MIMO technology enables an AP to send data to multiple STAs simultaneously, which doubles the radio spectrum
    resource usage, increases the number of access users and bandwidth, and improves user experience in multi-user access scenarios.
  • High-Speed Dual-Band Access
    The AP supports 160 MHz frequency bandwidth, which increases the number of available data subcarriers and expands transmission
    channels. In addition, the AP adopts 1024-QAM and MU-MIMO to achieve a rate of up to 0.575 Gbps on the 2.4 GHz band and 2.4 Gbps on
    the 5 GHz band, meaning up to 2.975 Gbps for the device.
  • Smart Antenna
    The dual-band smart antenna array technology and intelligent switchover algorithm enable the AP to intelligently sense the application
    environment and access density, achieving accurate Wi-Fi coverage and interference suppression. They together provide the optimal
    coverage direction and signal quality for each access STA, and offer seamless and smooth wireless network experience to users.
  • Wired and Wireless Security Guarantee
    To ensure data security, this AP integrates wired and wireless security functions and provides comprehensive security protection.
    Authentication and encryption for wireless access
    The AP supports WEP, WPA/WPA2-PSK, WPA3-SAE, WPA/WPA2-PPSK, and WPA/WPA2/WPA3-802.1X authentication/encryption modes to
    ensure the security of wireless networks. The authentication mechanism is used to authenticate user identities so that only authorized
    users can access network resources. The encryption mechanism is used to encrypt data transmitted over wireless links to ensure that data
    can only be received and parsed by authorized users.
  • Authentication and encryption for wired access
    The AP access control mechanism ensures that only authorized users can access the AP. Control and provisioning of wireless access point
    (CAPWAP) link protection and Datagram Transport Layer Security (DTLS) encryption provide security guarantee and improve data
    transmission security between the AP and WAC.
  • Automatic Radio Calibration
    Automatic radio calibration allows the AP to collect signal strength, channel, and other parameters of surrounding APs and generate an AP
    topology according to the collected data. Based on interference from surrounding environments and their loads, the AP automatically
    adjusts its transmit power and working channel to make the network operate at the optimal performance. In this way, network reliability
    and user experience are improved.
  • Cloud Management
    The AP supports cloud-based management. It provides various authentication functions, such as PSK and Portal authentication, without the
    need of a WAC or an authentication server. This greatly simplifies networking and reduces CAPEX. In addition, the AP can be deployed on
    the Huawei SNC platform to implement cloud-based network planning, deployment, inspection, and O&M.
  • Deployment and O&M Through HUAWEI eKit App
    The HUAWEI eKit App supports Wi-Fi-based deployment and barcode scanning–based deployment. After the deployment is complete, you
    can perform more project maintenance operations on the HUAWEI eKit App.
  • Wi-Fi-based deployment
    Quick deployment mode: You can use a mobile phone to connect to the management Wi-Fi network of an AP to deploy a network
    project. In this way, devices can automatically go onboarded and be remotely managed on the HUAWEI eKit App.
  • Barcode scanning–based deployment
    Another deployment mode: Use a mobile phone to scan the serial number (SN) of the device chassis and synchronize the device
    information to HUAWEI eKit to implement device onboarding management.
